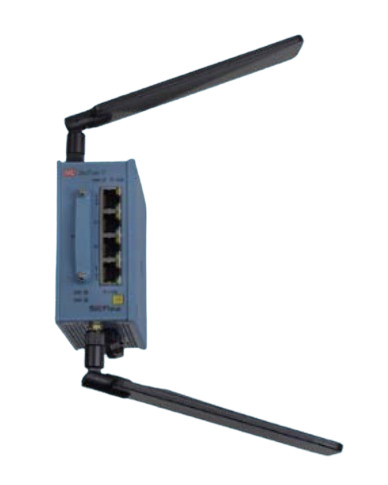

SecFlow®1 is an Ethernet router gateway, a member of RAD’s SecFlow suite of ruggedized Ethernet products.
With a unique built-in packet processing SCADA-aware engine, it fits mission-critical industrial applications. It is most suitable for infrastructure at utility companies with remotely distributed sites, connected to a SCADA control center. SecFlow1 is installed at remote locations, forwarding Ethernet or serial traffic over fiber optic or cellular links.
SecFlow1 features one FE UTP port and one GbE SFP port, two serial RS-232 ports or one RS-232 plus one RS-485, and a cellular modem with two SIM cards for maximum link resiliency.
SecFlow1 utilizes Ethernet ports for new IEC 61850 compliance IEDs for automation in substations.
SecFlow1 is equipped with serial interfaces for connectivity of legacy RTUs with new IP-based IEDs. SecFlow1 gateway converts legacy IEC-101 protocol to IP-based IEC-104, enabling seamless communication from the IP SCADA to both the old and new RTUs. This provides a single box solution for multi-service applications and smooth migration to all-IP networks.
The gateway is designed for installation under harsh environmental conditions. It features DIN-rail mount, IP30
protection level, wide operating temperature range (-40°C to 70°C) without fans, and EMI immunity (IEC61850-3, IEEE1613, and EN50121-4).
